Specifications Size 2/3 AA Replacement Battery No Set Type Batteries Only Type Li-Ion Nominal Capacity 1650mAh Model Number ER14335 read more

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal  tools for ensuring transformers, genera-tors, high voltage motors, capacitors, cables, arresters and other electrical equipment that can oprate in a safe and accurate manner. Specifications Range UT501A UT501B UT502A Insulation resistance (Ω) Test voltages 100V/250V/500V/1000V 0%~10%     250V/500V/1000V   0%~10%   500V/1000V/2500V     0%~10% 100V 0MΩ~100MΩ ±(3%+5)     250V 0MΩ~99.9MΩ ±(3%+5) ±(3%+5)   100MΩ~5GΩ ±(5%+5) ±(5%+5)   500V 0MΩ~99.9MΩ ±(3%+5) ±(3%+5) ±(3%+5) 100MΩ~5GΩ ±(5%+5) ±(5%+5) ±(5%+5) 1000V 0MΩ~99.9MΩ ±(3%+5) ±(3%+5) ±(3%+5) 100MΩ~5GΩ ±(5%+5) ±(5%+5) ±(5%+5) 2500V 0MΩ~99.9MΩ     ±(3%+5) 100MΩ~9.9GΩ     ±(5%+5) 10GΩ~20GΩ     ±(10%+5) Load current 50V (R=50kΩ) 1mA 0%~10% 0%~10% 0%~10% 100V (R=100kΩ) 1mA 0%~10% 0%~10% 0%~10% 250V (R=250kΩ) 1mA 0%~10% 0%~10% 0%~10% 500V (R=500kΩ) 1mA 0%~10% 0%~10% 0%~10% 1000V (R=1MΩ) 1mA 0%~10% 0%~10% 0%~10% 2500V (R=1MΩ) 1mA     0%~10% Short-circuit current   <2mA <2mA <2mA Low resistance (Ω) 0.01Ω~200Ω (about 5.0V/>200mA）   ±(2%+3) ±(2%+3) AC voltage (V) 30V~750V ±(2%+3)     30V~600V   ±(2%+3) ±(2%+3) Features Display count   2000 2000 2000 DAR 60s/15s and 60s/30s   √ √ PI     √ √ Auto range/Low battery indication   √ √ √ LCD backlight/Light alarm   √ √ √ Buzzer alarm/High voltage indication   √ √ √ Over load indication/Auto discharge   √ √ √ Test voltage secondary display   √ √ √ 10MΩ internal resistance test   √ √ √ Meets IEC 61557 61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only) General Characteristics Power 1.5V battery (LR6) x 6 Display 70.6mm x 34mm Product color Red and grey Product net weight 500g Product size 150mm x 100mm x 71mm Standard accessories Batteries, test leads, alligator clips, gallus, test probes (UT502A) Standard individual packing Gift box, carrying bag, English manual Standard quantity per carton 20pcs Standard carton measurement 500mm x 380mm x 330mm (0.063 CBM per standard carton) Standard carton gross weight UT501A: 17.7kg; UT501B: 20.9kg; UT502A: 18.9kg read more

AUTOMOTIVE BATTERY TESTER read more

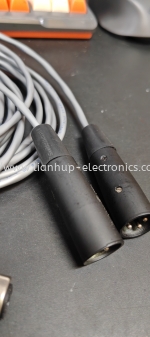

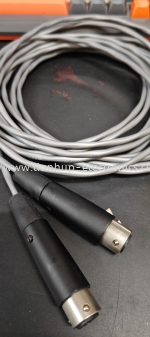

DTN 8761 Multicore Single Pair Cable Size: 7x0.25TC*2C+alu foil+7/0.25TC Colour: Grey read more
